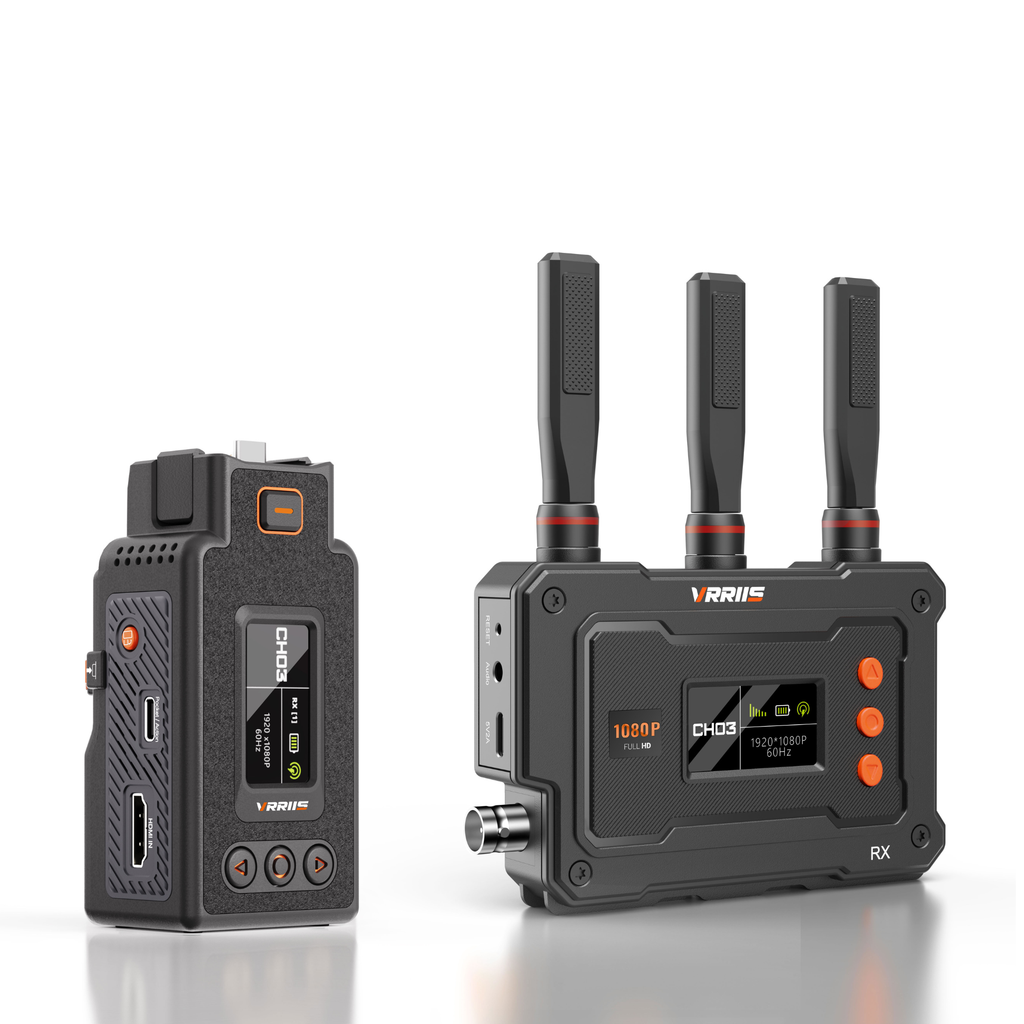

Professional SDI Wireless Video Transmission for Pocket & Action Cameras

Designed for professional filmmakers, live event videographers, and content creators, the VRRIIS WL070 II delivers rock-solid SDI wireless transmission tailored for DJI Pocket 3/4, DJI Osmo action and Insta360 Ace pro cameras. Whether you're shooting a live concert, a wedding, a sports event, or a film production, the WL070 II gives you the freedom to go wireless without sacrificing broadcast-grade signal quality.

Use Cases

• Live Event Production: Transmit real-time video from handheld pocket cameras to a director's monitor or switcher up to 500M/1640FT away—no cables, no clutter.
• Multi-Camera Setups: With 1TX to 5RX support, feed up to five receivers simultaneously for multi-angle live streaming or broadcast workflows.
• Action & Sports Filming: The unique expansion adapter locks your action camera directly onto the TX unit, keeping your rig compact and stable even in fast-moving environments.
• Studio & Field Production: HDMI IN/OUT and SDI OUT make it easy to integrate with professional monitors, switchers, and recording devices on set or in the field.

Key Features

• Type-C male port — plugs directly into DJI Pocket 3/4 for seamless connection and reverse charging
• TX equipped with UVC IN female port — supports Pocket 3/4/4P and reverse charging
• Unique expansion adapter — directly mounts Action camera onto the TX unit
• Horizontal/Vertical screen video orientation adjustable on TX
• HDMI IN/OUT up to 1080P@60Hz — compatible with monitors, switchers, and other devices
• SDI OUT at max 1080P@60Hz — broadcast-standard output for professional workflows
• Wireless range up to 500M / 1640FT — reliable long-distance transmission
• 1.47-inch built-in screen — real-time signal status display
• 20 frequency band adjustment — minimize interference in crowded RF environments
• Supports NP-F970/550 series battery + USB-C power port — flexible power options for extended shoots
• 1TX to 5RX — one transmitter feeds up to five receivers simultaneously

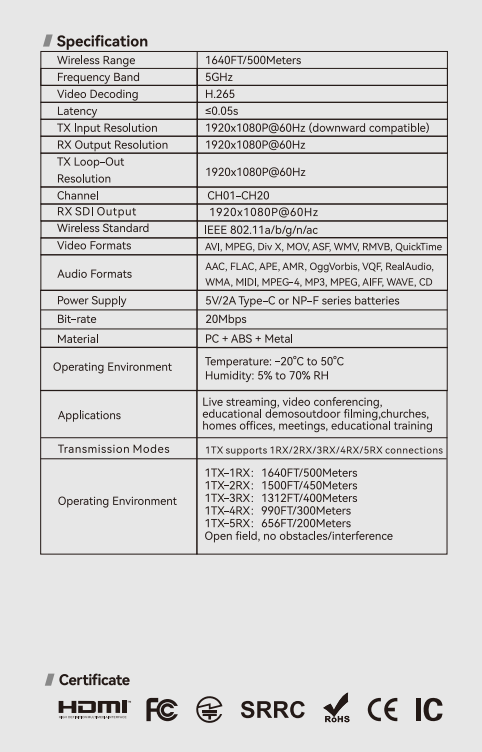

Transmissionrange with multi-Receiver

1TX-1RX: 1640FT/500Meters

1TX-2RX:1500FT/450Meters

1TX-3RX:1312FT/400Meters

1TX-4RX: 990FT/300Meters

1TX-5RX: 656FT/200Meters

(Open field, no obstacles/interference)

Compatibility

Compatible with DJI Pocket 3, DJI Pocket 4, DJI Osmo action series and Insta360 Ace pro cameras(It can work to action camera which use 2-prong adapter
& support webcam), and any device with HDMI or SDI output. Integrates seamlessly into professional broadcast chains.

One important note to mention: this model cancels the UVC output port on the receiver. It’s specially tailored for professional crews doing studio shooting, large event broadcast and on-location filming, not designed for direct PC live streaming via OBS.

Note: Battery not included.
